Configuring and customizing a SequenceServer BLAST installation

  • Linux or Mac and Ruby (3.2)
  • NCBI BLAST+ (2.14.0+) is interactively downloaded if absent
  • Standard Unix build tools (e.g., gcc, make) are required to install SequenceServer. This is because SequenceServer's need to parse BLAST's XML output compiles some C code as part of the installation process. This means that the On a Mac, this means having Xcode and CLI tools for Xcode installed. On Ubuntu and other Debian-based Linux systems, you would have to install the ruby-dev and build-essential packages in addition to ruby.
  • Alternatively, use Docker to run SequenceServer on Linux, Mac, or Windows.
  • Alternatively, use our cloud BLAST service: forget about the command-line and servers; use a point-and-click interface to set up everything in a secure manner, with powerful servers accessible worldwide.

Once you have Ruby and the build tools installed, or Docker, the commands below can be used to install SequenceServer for the first time. Later on, the same command can be used to update SequenceServer to the latest version:

 sudo gem install sequenceserver

If using Docker:

 docker pull wurmlab/sequenceserver

Run the following in a terminal to configure and run SequenceServer. It will automatically download NCBI BLAST+ if absent, ask for the location of directory containing database sequences, format FASTA files for use with BLAST+, and list them for use in the search form:

 sequenceserver

If using Docker, you need to provide the databases directory up-front:

docker run -itp 4567:4567 -v /path-to-database-dir:/db wurmlab/sequenceserver

That's it! Open http://localhost:4567 in your web-browser and start BLAST-ing!

This varies from computer to computer. Run the following command in a terminal to find out:

echo "$(ruby -e 'puts Gem.path[0]')/gems/sequenceserver-2.1.0"

You may need to change 2.0.0 in the above command to reflect the version of SequenceServer you are running.

SequenceServer requires the location of NCBI BLAST+ binaries and the location of database sequences (either in FASTA or BLAST database format) to run. These can be specified using command line parameters or through a configuration file. SequenceServer looks for a configuration file by default at ~/.sequenceserver.conf. This can be changed by using the -c option: sequenceserver -c ~/.sequenceserver.ants.conf.

Configuration files have a simple key-value syntax and can be viewed and modified with standard tools. Alternatively, -s option can be used to add an arbitrary key-value to the configuration file or to change the value of a key:

sequenceserver -c ~/.sequenceserver.ants.conf -s -d /path/to/new/location/of/database/sequences
sequenceserver -s -b /path/to/latest/blast/binaries

The following table lists all configuration values accepted by SequenceServer through the configuration file or through command line options. Command line options take precendence over the values in configuration file.

Configuration file Command line Description
:bin: -b / --bin Indicates path to the BLAST+ binaries.
:database_dir: -d / --database_dir Indicates path to the BLAST+ databases.
:num_threads: -n / --num_threads Number of threads to use for BLAST search.
:num_jobs: Number of BLAST searches to run concurrently (default: 1).
:job_lifetime: How long to keep search results for (in minutes).
:options: Predefined search options for different BLAST algorithms.
:frame_options: Access options for embedding SequenceServer in an iframe. Possible values :deny, :sameorigin, or 'ALLOW-FROM uri'.
:require: -r / --require Load extension from this file.
:host: -H / --host Host to run SequenceServer on.
:port: -p / --port Port to run SequenceServer on.

The following table lists additional command line options that are available. We have already seen the second and the third option. We will discuss the rest in following sections.

Command line Description
-x / --import Import pre-generated BLAST/DIAMOND XML output for visualisation
-c / --config_file Provide path location of your custom configuration file
-s / --set Set configuration value in default or given config file
-m / --make-blast-databases Create, update or reformat BLAST databases
-l / --list-databases List found BLAST databases
-i / --interactive Run SequenceServer in interactive mode
-D / --devel Run SequenceServer in development (debug) mode
-v / --version Print version number of SequenceServer that will be loaded
-h / --help Display this help message

The BLAST search algorithms don't directly understand FASTA files. BLAST includes the makeblastdb tool that is used to convert FASTA files into the optimized BLASTDB format, which is then used by the search algorithms:

makeblastdb -dbtype <prot_or_nucl> -title <human_readable_name> -in <path_to_fasta> -parse_seqids

SequenceServer's makeblastdb wrapper can recursively scan a directory for FASTA files and prompt you to convert them into BLAST databases. SequenceServer automatically determines whether the file contains nucleotide or amino acid sequences so you don't have to specify it yourself and suggests a human readable name by "cleaning" the FASTA file name.

SequenceServer does this automatically when it does not find any BLASTDB files in database_dir. Rest of the times you can invoke this functionality manually, such as after adding new FASTA files to database_dir.

sequenceserver -m

The above command reads database_dir from the default configuration file(~/.sequenceserver.conf), but that can be changed:

sequenceserver -m -d /path/to/directory_with_fasta_files
sequenceserver -m -c /path/to/config_file_containing_database_dir

If you would like to include taxonomy id of sequences in the database, you can do so by including .taxid_map.txt file next to the FASTA file. For example, if your FASTA file is /database_dir/ants.fa, the taxid map file must be called /database_dir/ants.taxid_map.txt. If you have this file, SequenceServer will automatically use it with -taxid_map option of makeblastdb. The file is expected to contain a sequence id and a taxonomy id on each line.

If you do not have this file, SequenceSever will prompt you to enter one taxonomy id that can be used for all sequences in the FASTA file. You can get the taxonomy id of a species at NCBI Taxonomy browser.

An example prompt:

FASTA file: /Users/priyam/biodb/protein/Solenopsis_invicta/SI2.2.3.fa
FASTA type: protein
Proceed? [y/n] (Default: y):
Enter a database title or will use 'SI 2.2.3 ':
Enter taxid (optional): 13686

Aroon Chande has put together a script to automatically create BLASTDBs and restart SequenceServer when a FASTA file is added to database directory.

NCBI has introduced a new BLAST database format, called version 5. If you have a mix of the old, version 4, and version 5 databases in your databases directory, it can cause unexpected problems. Furthermore, for features like FASTA download to work correctly, it is important that BLAST databases are created using the -parse_seqids option of makeblastdb.

SequenceServer checks for such incompatibilities automatically on startup and offers to upgrade problematic databases. This works even if you have lost the original FASTA file from which the database was created. Human readable database name and taxonomy identifiers in the databases are preserved during the upgrade. Note that you may find intermediate FASTA and taxid map files in the databases directory after upgrading databases.

You can also invoke this functionality by running sequenceserver -m.

NCBI provides publicly available sequences as pre-formatted BLAST databases and can be downloaded with update_blastdb.pl script distributed with BLAST. Since these databases are huge, they are split across several files (volumes) and linked together with an alias file. SequenceServer works seamlessly with such, multi-part databases. We also have an alternative to update_blastdb.pl to download BLAST databases from NCBI faster: ncbi-blast-dbs.

# Install ncbi-blast-dbs
sudo gem install ncbi-blast-dbs

# View available BLAST databases.
ncbi-blast-dbs

# Download one or more databases.
ncbi-blast-dbs nt nr

Further, SequenceServer understands NCBI sequence ids and automatically links to NCBI page corresponding to the hit sequences from the HTML report.

If you have a long list of databases, you can use the experimental 'tree widget' for displaying databases that was contributed by Björn Hammesfahr of KWS SAAT SE & Co. KGaA.

To enable it, change the :database_widget: key in configuration file to tree.

:databases_widget: tree

This folder mimics the structure of the databases directory and respects symlinks. You can find example directly structure and screenshot in the above mentioned link.

As a further example, the example database dir include in SequenceServer code baselooks as follows with the tree data widget:

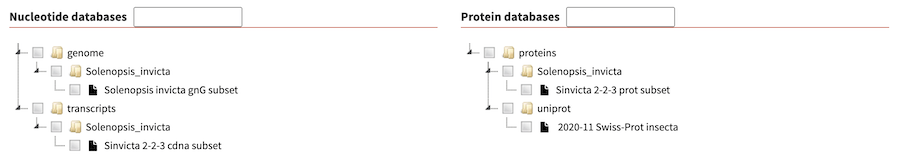

Tree widget for databases image

With a few exceptions, all command-line BLAST+ parameters can be provided using the "Advanced params" textbox in the search form. Options that change input/output behaviour (e.g., -query, -db, -subject, -outfmt, -import_search_strategy) are not allowed.

For security, only letters, numbers, space, hyphen, underscore, and period are allowed in "Advanced params" textbox.

SequenceServer changes BLAST+'s default:

  • -evalue 1e-5 is added to all searches
  • -task blastn is added to BLASTN searches

The above changes are applied transparently, i.e., they are added to the 'Advanced params' textbox once you have pasted your query and selected the databases and can be overriden.

The advanced parameters applied by SequenceServer are listed in the configuration file. You can change them as per your requirements.

Starting with version 2.1 of SequenceServer, it is possible to define multiple advanced parameter "presets" in the config file for each BLAST algorithm that are then automatically made available in the search form. Here's an example:

:options:
  :blastn:
    :default:
    - "-task blastn"
    - "-evalue 1e-5"
    :short-seq:
    - "-task blastn-short"
    - "-evalue 1e-1"

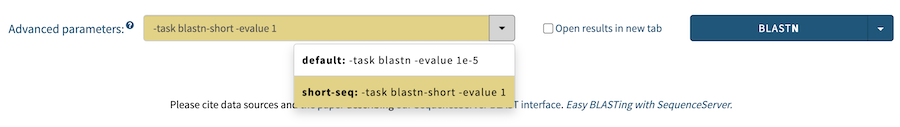

Advanced BLAST options image

SequenceServer automatically includes scientific name of the species in its HTML report. All taxonomy data returned by BLAST is provided in the "Full tabular report" download option. For this to work, BLAST database files should contain taxonomy id of the sequences and you must have downloaded NCBI "taxdb".

See "Creating BLAST databases" section for how to include taxonomy information in BLASTDB files. If you are using BLAST databases downloaded from NCBI then you don't need to worry about this - taxonomy information is included in the database files.

To download NCBI taxdb, run:

sequenceserver --download-taxdb

The above command downloads taxdb files to ~/.sequenceserver, where SequenceServer keeps a few other files as well.

It is often desirable to link search hits to external resources such as NCBI, UniProt, or a genome browser. SequenceServer provides a powerful and flexible mechanism to do this. Simply edit lib/sequenceserver/links.rb in your SequenceServer installation directory to add a link generator function, based on examples and documentation provided in that file. Alternatively, you can write your link generator functions in a separate file and load it through :require_file: key in config file.

You can access methods defined in the Hit class within a link generator. Alignment coordinates are not defined on a hit, but on hsps. Calling hsps method (in link generator) will return an Array of HSP objects for that Hit.

Which database a hit came from is not provide by BLAST in it’s output. You can call out to whichdb method from your link generator to get a list of all databases that the hit could have come from. If your sequences have unique ids across _all_ FASTA files / BLAST databases, you know that the only element in the list is the database that the hit came from. whichdb returns an Array of SequenceServer::Database objects from which you can get database title and path. whichdb is slow. Alternative is to encode db info (a short name) in the sequence id, and use regex matching to decide which database a hit came from.

URL parameters should be encoded. It replaces whitespace and other relevant chars in the string with % encoding followed in URLs.

JBrowse's website has an excellent tutorial in this regard: How can I link BLAST results to JBrowse. The tutorial makes use of SequenceServer's plugin architecture which is described briefly in the previous section.

If your IP is publicly accessible, your colleagues will be able to access your SequenceServer instance at http://your-ip:4567, or a particular search result at http://your-ip:4567/job-id. This usually requires being in the same subnetwork, or asking IT services to open your machine to the outside world. You may also want to ask IT services for a fixed IP.

If you already have a fixed, public IP but port 4567 is blocked by a firewall, you can try running SequenceServer on a different port: sequenceserver -p 8080. Administrator privilege is required to use port 80: sudo sequenceserver -p 80.

You can disable sharing by setting :host: key in config file to 127.0.0.1: sequenceserver -s -H 127.0.0.1

BLAST results are stored for 30 days by default. You can change this by setting the :job_lifetime: key in configuration file (the value is specified in minutes).

Either put your user account or create a local user account for SequenceServer sudo useradd -s /sbin/nologin seqservuser.

Create file /etc/systemd/system/sequenceserver.service with the following content, changing ExecStart (and maybe User) to match your environment:

[Unit]
Description=SequenceServer server daemon
Documentation="file://sequenceserver --help" "http://sequenceserver.com/doc"
After=network.target

[Service]
Type=simple
User=seqservuser
ExecStart=/path/to/bin/sequenceserver -c /path/to/sequenceserver.conf
KillMode=process
Restart=on-failure
RestartSec=42s
RestartPreventExitStatus=255

[Install]
WantedBy=multi-user.target

Stop any SequenceServer instance you might be running and check the above works by running the following command:

## let systemd know about changed files
sudo systemctl daemon-reload
## enable service for automatic start on boot
systemctl enable sequenceserver.service
## start service immediately
systemctl start sequenceserver.service

See systemd website for more options and debugging if it fails.

Create file /etc/init/sequenceserver.conf with the following content, changing author and setuid lines to your name and username:

description "Upstart config for SequenceServer"
author "<full name>"

start on filesystem
stop on shutdown

setuid <username>

exec sequenceserver

Stop any SequenceServer instance you might be running and check the above works by running the following command:

sudo start sequenceserver

See Upstart Cookbook for more options and debugging if it fails.

Create file ~/Library/LaunchAgents/sequenceserver.plist with the following content:

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
  <dict>
    <key>KeepAlive</key>
    <true />
    <key>Label</key>
    <string>sequenceserver</string>
    <key>ProgramArguments</key>
    <array>
      <string>/usr/local/bin/sequenceserver</string>
    </array>
    <key>RunAtLoad</key>
    <true />
  </dict>
</plist>

Stop any SequenceServer instance you might be running and check the above works by running the following command:

launchctl load ~/Library/LaunchAgents/sequenceserver

SequenceServer's built-in webserver can handle medium workloads. Though, for large communities or to integrate SequenceServer as part of existing websites it may be desirable to run SequenceServer with Apache. Also, setting up with Apache means SequenceServer will automatically be available when server restarts.

To setup SequenceServer with Apache, first install Phusion Passenger™ by following the instructions at their website. Then configure Apache to load SequenceServer by following their guide on deploying a Ruby applicaion, replacing /path-to-your-app with SequenceServer's installation directory. Finally, go to the directory where SequenceServer is installed and edit config.ru to indicate absolute path to SequenceServer's config file and DOTDIR which are respectively ~/.sequenceserver.conf and ~/.sequenceserver by default:

# Remove this line.
SequenceServer.init

# And add these two, changing the path.
SequenceServer::DOTDIR = "/home/foo/.sequenceserver"
SequenceServer.init :config_file => "/home/foo/.sequenceserver.conf"

For SequenceServer 1.0.7 and earlier, you will additionally need to delete Gemfile from SequenceServer's installation directory.

If you plan to deploy multiple SequenceServer instances, you should deploy each to a sub-uri.

If you deploy to a sub-uri a trailing slash is required for JS, CSS and the icons to load properly. Ideally, just putting a trailing slash in Apache config should be sufficient. See this thread for more solutions.

Further, because BLAST searches can take time, you may additionally want to configure Timeout in your Apache config to a suitable value (e.g., 5 minutes) so that the Apache doesn't close the connection before a BLAST search has been performed.

In reverse proxy setup, requests are forwarded from Nginx (or Apache) to SequenceServer's built-in server. Following config indicates how to proxy requests from Nginx to SequenceServer from a sub-uri of your domain (my-domain.com/sequenceserver). Nginx will timeout requests if it can't connect to SequenceServer within 8 seconds or if it doesn't hear back from SequenceServer within 180 seconds (3 minutes) after it forwarded the request (that is, BLAST requests that take more than than 3 minutes will be timed out by Nginx). Please see Nginx documentation for details info of each directive.

location /sequenceserver/ {
    root /home/priyam/sequenceserver/public/dist;
    proxy_pass http://localhost:4567/;
    proxy_intercept_errors on;
    proxy_connect_timeout 8;
    proxy_read_timeout 180;
}

SequenceServer can be integrated with Nginx similar to Apache, using Phusion Passenger. And Apache can be used instead of Nginx to proxy connections as well. Whether to use reverse proxy or Phusion Passenger and Apache or Nginx is up to the user. A discussion of pros and cons of each is beyond the scope of this documentation.

If you are using SequenceServer with Apache or Nginx then you can easily password protect your data using HTTP basic authentication scheme. These tutorials from DigitalOcean detail the steps required for both Apache and Nginx.

If you are using SequenceServer without Apache or Nginx, you can still add password protection quite easily. Just add the following snippet at line number 57 in lib/sequenceserver/routes.rb, change the password ('admin') to something more and secure, and restart SequenceServer.

use Rack::Auth::Basic, "Restricted Area" do |username, password|
  username == 'admin' and password == 'admin'
end

Given SequenceServer simply runs NCBI BLAST+ commands in the shell it's relatively easy to devise a scheme to run BLAST searches on another, more powerful computer or on cluster. For example, by replacing BLAST+ binaries with a "shim" like below, we can run BLAST searches on another computer using SSH.

#!/usr/bin/env sh

blast=`basename $0`
param=`echo "$@" | sed "s/\-db\ /\-db\ \'/" | sed "s/\ \-query\ /\'\ \-query\ /"`

ssh hostname /usr/local/bin/$blast $param

Additionally, TMPDIR environment variable must be set to a directory that's shared between both the machines, e.g., via SSHFS.

Using a job queuing system such as qsub may be a bit involved depending on the flexibility afforded by the system. Fortunately, we have a solution for qsub thanks to Andy Foster and Loraine Brillet-Guéguen. Create the following script:

#!/usr/bin/env sh

jobid=`mktemp bl.XXXX`
rm $jobid

rfile=$1
efile=$2
blast=$3

shift 3

param=`echo "$@" | sed "s/\-db\ /\-db\ \'/" | sed "s/\ \-query\ /\'\ \-query\ /" | sed "s/\-outfmt\ /\-outfmt\ \'/" | sed "s/\ \-num_threads\ /\'\ \-num_threads\ /"`

qsub -sync y -b y -pe slowpara 4 -N $jobid -o $rfile -e $efile /usr/local/bin/$blast $param

And add the following at line 51 of lib/sequenceserver/blast/job.rb:

def run
  system("/path/to/script #{stdout} #{stderr} #{command}")
end

As above, TMPDIR environment variable must be set to a directory that's shared between both the machines, e.g., via a shared file system such as GPFS, NFS mount or SSHFS.

Embedding SequenceServer in an iframe

By default, any website can embed your SequenceServer installation via iframe provided there is a public IP or URL pointing to it.

You can change this behaviour by setting :frame_options: key in the config file:

:frame_options: :deny
Completely disable embedding in an iframe at all.
:frame_options: :sameorigin
Only allow websites hosted within the same domain to embed SequenceServer.
:frame_options: 'ALLOW-FROM my-url'
Only allow the webiste hosted at 'my-url' to embed SequenceServer. Of course, 'my-url' is a website address that you provide.

SequenceServer has a simple API that you can use to run BLAST searches programatically. Thanks to Richard Adams, the API is documented at the following link, including an example bash script to BLAST all databases: SequenceServer API.

If you are making custom modifications to SequenceServer, following tips may come handy:

SequenceServer's development mode, activated as sequenceserver -D enables verbose logging and loads unbuilt assets (JS and CSS). SequenceServer's interactive command-line mode, activated as sequenceserver -i lets you access all server-side objects and methods, call them and inspect their output in Ruby.

SequenceServer stores job data in ~/.sequenceserver folder. Each job gets its own directory here and has a UUID for name, which is also the job id that is used internally to look up job status, etc.

  1. View sequence link is disabled if the length of the hit exceeds 10,000 residues - ok if target sequences are proteins or contigs. We feel this mode of visualising sequences is not optimal for very long sequences (e.g., scaffolds).
  2. During setup on some versions of OS X, an extra space is added at the end of autocompleted paths when SequenceServer prompts for paths to the BLAST+ executables or database directory. This appears to be due to a bug in Ruby readline library. Unfortunately it is beyond our scope to fix this slightly inconvenient bug, especially since working around it is straightforward (i.e. you just need to backspace it).
0. What about the SequenceServer Cloud Service?
There are many more FAQs, and dedicated premium support channels for the Cloud BLAST Service!
1. Can I use SequenceServer as an access-point for a community genome database?
Yes. SequenceServer is used as data querying mechnism in over 30 community databases. You can use SequenceServer as it is along with supporting pages describing the data and related resources (e.g., HopBase), customise it extensively (e.g., Lotus Base), or integrate it with InterMine (e.g., PlanMine).
2. Does SequenceServer include a genome browser?
No, but any web based genome browser such as JBrowse, Biodalliance, or igv.js can be used. Also see: Integrating with JBrowse and Adding links to search hits.
3. Is it possible to disable Grammarly for the query sequences?
Yes, but each user would have to do it themselves: disable Grammarly.

BLAST is a heuristic, i.e., it is fast and approximate instead of being slow and perfect. It starts by looking for a minimal 100% match (e.g., 11 consecutive nucleotides with 100% identity between your query and the database sequence). If it finds none its over. If it does find a match, it extends that in both directions: identical (or similar) bases add points; differences are negative points. If too many points are lost, it stops aligning. BLAST might not stop at the exact best place, alignment ends might be wrong. bitscore is the total number of points for the aligning region. The bigger it is, the stronger the alignment. But the bitscore doesn't take into account sequence length nor database size. The E-value does take these into account. It is better to look at E-values than bitscores. The E-value represents the number of times the observed alignment would be expected to occur by chance (it is not a p-value!); depends on the bitscore, the length of the query sequence, and the cumulative length of all sequences in the database. It is easier to talk about strong E-values (e.g. 1e-100 = 10-100 = almost zero; impossible to obtain by chance) vs weak E-values (e.g 0.1; for similarity that may be due to chance) than small vs large (which is always a bit confusing).

BLAST has been rewritten several times - most recently by NCBI as BLAST+. NCBI now use and recommend using BLAST+. The BLAST+ publication explains why BLAST+ is easier to use and faster than the old legacy BLAST. WU-BLAST is now commercial and called AB-BLAST. There is probably no good reason to use either alternative. Note that the output formats change slightly from one BLAST implementation to the next. NCBI's BLAST+ is actively developed and is the only one supported by SequenceServer.
